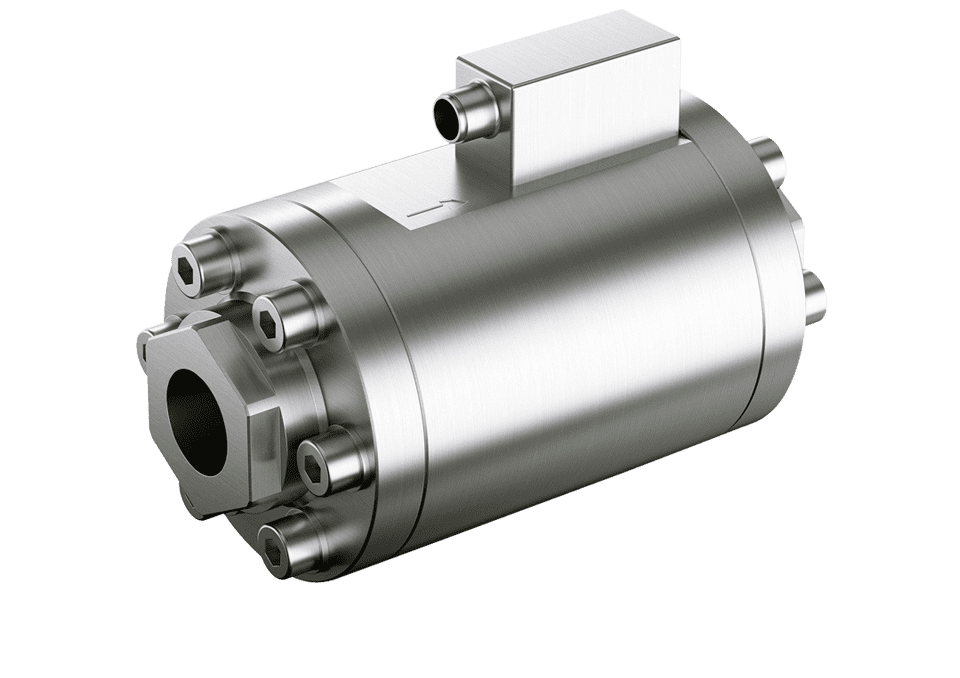

KRAL Flowmeters OMS Series.

Stainless steel design for demanding media.

When selecting a flowmeter for demanding fluids, the issue of material resistance always arises. The KRAL flowmeter OMS series is a stainless steel design for low and high viscous media, equipped with ball bearings or plain bearings depending on the application.

Your benefits.

  • High accuracy positive displacement meter.
  • Low service costs and long lifespan with KRAL products.
  • Extremely robust liquid flow meter.
  • Stabilization zones unnecessary.
  • Low friction and minimal loss of pressure.
  • Very compact design of the measuring unit.
  • For harsh industrial conditions.

Application examples.

  • Dosing of resin, paints, adhesives.
  • Coating of propellers in wind power turbines.
  • Insulating materials.
  • Greases and waxes.
  • Water volumetric flow measurements.

Materials.

  • Housing: Stainless steel.
  • Screws: Stainless steel (coated for high viscosity media).
  • Bearings: Ball or sliding bearings.
  • Gasket with ball bearings: Viton®.
  • Gasket with sliding bearings: Teflon®.
  • Technical data.
    Technical data OMS-020 OMS-032 OMS-052 OMS-020
    Media   Low viscosity Low viscosity Low viscosity High viscosity
    Nominal diameter DN inch ¾ 1 1 ½ ¾
    Flow rate l/min Qmax 45 150 525 -
      Qnom 30 100 350 10
      Qmin 0.6* 2.0* 7.0* 0.04*
    Max. pressure bar 185 185 120 400
    Temperature °C -20 to +150 -20 to +150 -20 to +150 -20 to +80
    Viscosity mm²/s 1 to 10² 1 to 10² 1 to 10² 10² to 10⁶
    Precision of measurement value ±0.1 %* ±0.1 %* ±0.1 %* ±0.5 %
    Repeatability   ±0.01 % ±0.01 % ±0.01 % ±0.01 %
    K-factor P/I 1,280 468 142 66,000
    Frequency at Qnom Hz 640 780 828 11,000
    * information in the case of non-lubricating media on request
  • Sensor.
    Sensor BEG 44A BEG 47D** / BEG 47E**
    Application   High pressures,
    broad temperature range    		 Ex-range
    K-factor   K2 K1
    Signal   Push-Pull Namur
    Temperature [°C] -25 to +120 -25 (-40) to +100
    Max. pressure [bar] 420 40
    **dependent on temperature
  • Operating instructions.
